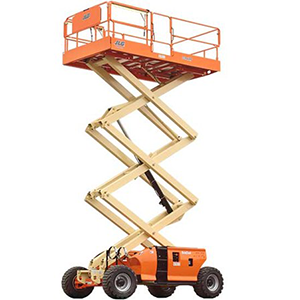

All Terrain Scissor Lift

All Terrain Scissor Lift

The go anyway Scissor if you have a rough area to access, Great for the wiring jobs up high.

From $200 per day INCL GST (plus delivery) 6m deck

From $240 per day INCL GST (plus delivery) 8m deck

All prices exclude a 10% Insurance waiver fee

Safety Notes

The below safety notes are required for safe use of this equipment
Safety Sheet (PDF) (Click to Download)

For more information or a quote

Call our team on (07) 905 5066
or
Click Here

Standard Features

  • 4 wheel drive
  • 4 hydraulic outriggers with automatic levelling
  • Roll-out deck extension
  • Proportional controls
  • Non-marking tyres
  • Power line to platform
  • Drive motion alarm
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Oscillating axle
  • Hour meter
  • CE approved

Additional Information

Max. Working Height 8.5m
Max. Platform Height 6.5m
Platform Size (stowed) 2.73m x 1.4m
Platform Size (extended) 3.93m x 1.4m
Extension Deck Length 1.2m
Overall Length 3.3m
Overall Width 1.45m
Stowed Height 2.35m
Wheel Base 2.0m
Ground Clearance 260mm
Platform Capacity (SWL) 420kg
Max Wind Speed 12.5m/s
Max Drive Height 6.5m
Drive Speed Above 2.4m 0.66km/h
Drive Speed Below 2.4m 5.2km/h
Gradeability 35%
Max Outrigger Levelling (front to rear) 6º
Max Outrigger Levelling (side to side) 10º
Inside Turning Radius 2.5m
Outside Turning Radius 4.75m
Exit/Entry Angle 20°
Tyres 23” x 8.9” – 12 non-marking
Controls Proportional joystick
Drive System 4 wheel drive
Power Source Kubota diesel engine
Weight 2,360 kg
